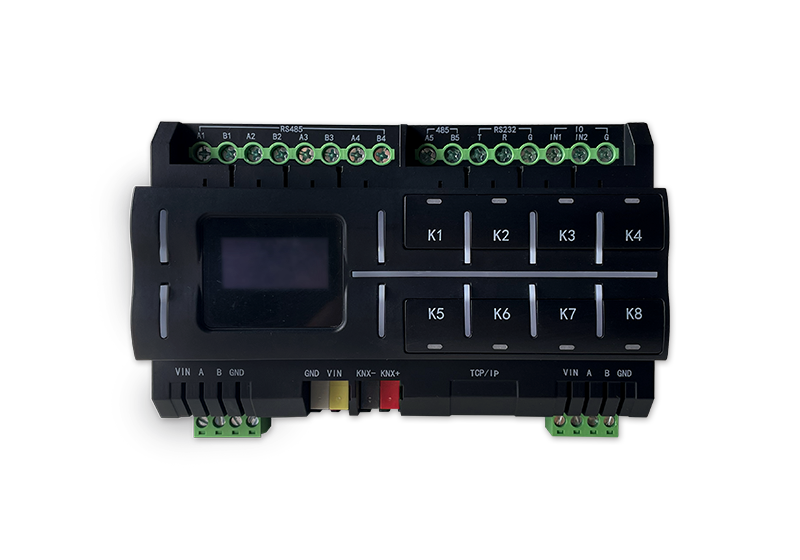

Product Model：GWL-4000/6000

· Unique dual system architecture

· Featuring both bus and platform features

· Rich RS485 bus and RS232 expansion interface

· Built in massive protocol library

· Built in OLED display screen for easier engineering debugging

· Supports both local and remote control simultaneously

· Support scenario combination control

· Support for automated configuration

· Support OTA remote upgrade

Support Huawei HILINK platform device expansion, or support Tuya platform device expansion such as lighting, curtains, etc; Support voice control for Xiaodu, Apple, and other devices.

Operating voltage: DC12-24V

Static current: 500mA

Output interfaces: 1 GT-BUS interface (GWL-4000 supports up to 24 panels and 6 indoor air conditioning units), 5 RS485 expansion bus interfaces, and 1 TCP/IP network interface

Human computer interaction interface: OLED display screen 128 * 64, working status indicator light, GT-BUS transceiver signal indicator light, etc

Keys: 8 square keys+10 bar keys

Size (W*D*H): 145 * 100 * 65mm

Installation method: Flat or cabinet installation

Color: Black
