Product Model：BLD-01P/BLD-01-LP

·Using wireless Bluetooth Mesh networking

·Constant current drive, dialing to adjust current

·Support brightness percentage control

·Support color temperature percentage control

·9W/16W optional

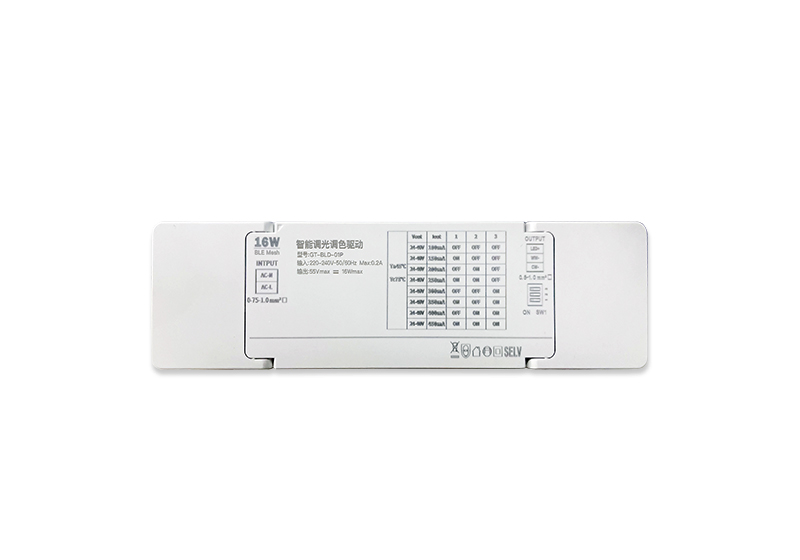

BLD-01P:

Input: AC220-265V 50/60Hz

Output: 55Vmax, 16Wmax

Current dial: 100/150/200/250/300/350/400/450mA

Communication method: BLE Mesh

Size (W * D * H): 138 * 37 * 26mm

Installation: Near the lighting fixtures

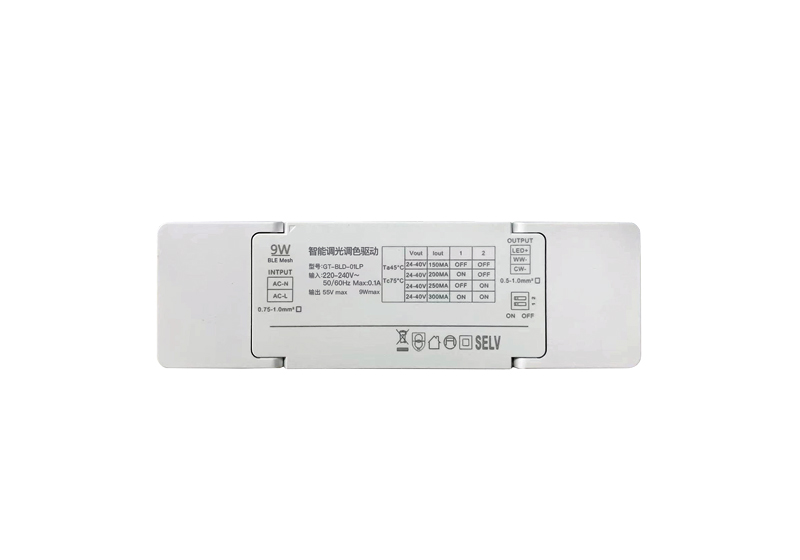

BLD-01-LP:

Input: AC220-265V 50/60Hz

Output: 55Vmax, 9Wmax

Current dial: 150/200/250/300mA

Communication method: BLE Mesh

Size (W * D * H): 116 * 35 * 26mm

Installation: Near the lighting fixtures
